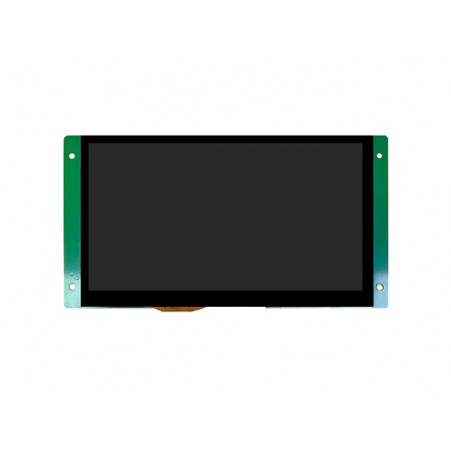

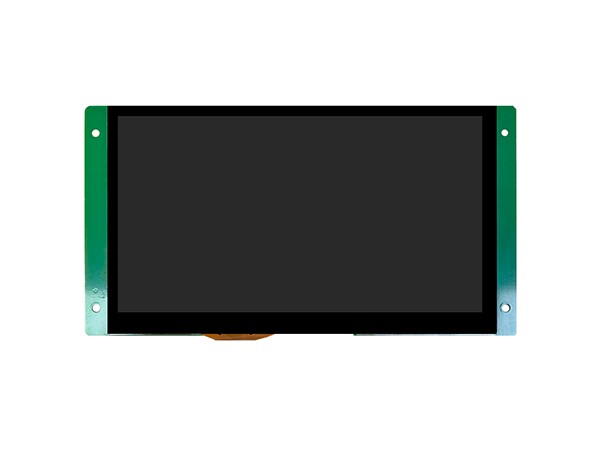

HMI 7inch 1024x600 lcd display touch panel RS232 RS485 TTL
Rondelidisplay uart lcd touch display for industrial machine,
RTOS system, 7 inch 800x480 display (max support resolution1024x600) ,
DC5V, 2 channel TTL UART,RS232/RS485 6 4Mbyte SPI NAND Flash, Resistive(capacitive) touch, buzzer
Uart touch display general parametre:
Specification |
||
Hardware Performanc e |
Model |
RZ070M0205-R series |
Operate System |
RTOS |
|
LCD Display |
7 "TFT LCD |
|
R e s o l u t i o n |
1024*600 |
|
Color |
65536 |
|
Brightness |
250cd/m2 |
|
Blacklight |
LED (support backlight adjust) |
|
LED lifespan |
50,000hr |
|
Touch panel |
Capacitive touch panel |
|
CPU |
6 00MHz ARM9 RAM 32MB DDR2 |
|
Memory |
6 4 Mbyte SPI NAND Flash |
|
RTC |
NO |
|
Buzzer |
Support |
|
Power down datastorage |
support |
USB port |
No |
|
P rogram d ownload method |
SD card |
|
Singnal port |
UART 1 :TTL UART 2 : TTL |
|
E lectrical |
Power |
Max 3. 5W |
Voltage |
DC 5V |
|
Power protect |
With + / - 2 5 0V lightning surge protection capability |
|
A llow Powerloss |
<5ms |
|
CE&ROHS |
Comply with EN61000 -6 -2 : 2005,EN61000 - 6 -4 :2007standards; lightning surge +/ - 250V,group pulse +/ - 2KV;static contact discharge +/ -4KV;static air discharge +/ - 8KV. . |
|
E nvironment |
Working Temp |
- 10℃ ~50℃ |
Storage Temp |
-30℃ ~70℃ |
|
H umudity |
10 ~90% RH |
|
V ibration |
10-25Hz (X、Y、Z direction , 2g/30minuts) |
|
Cooling way |
Natural air cooling |
|
Others |
P rotection level |
T h e front panel confo rms to IP6 5 (installed with a flat cabinet) , and the rear shell of the fuselage confo rms to IP2 0 |
Overall size |
190. 5*105.4*17.3mm |
|
D isplay size |
1 66.2*102*8.8mm |
|
Active area |
1 54*86mm |
|
Screw hold distance |
180.3*80mm |
|
Screw hole diameter |
3 .2 mm(recommend M3 scree) |
|
P roduct weight |
300g |
|
|
|
|
|
S o f t w a r e |
Upper computer |
![Uart touch display Uart touch display](/uploadfile/userfiles/image/20230902/RHMI70001-1024600R.jpg)
