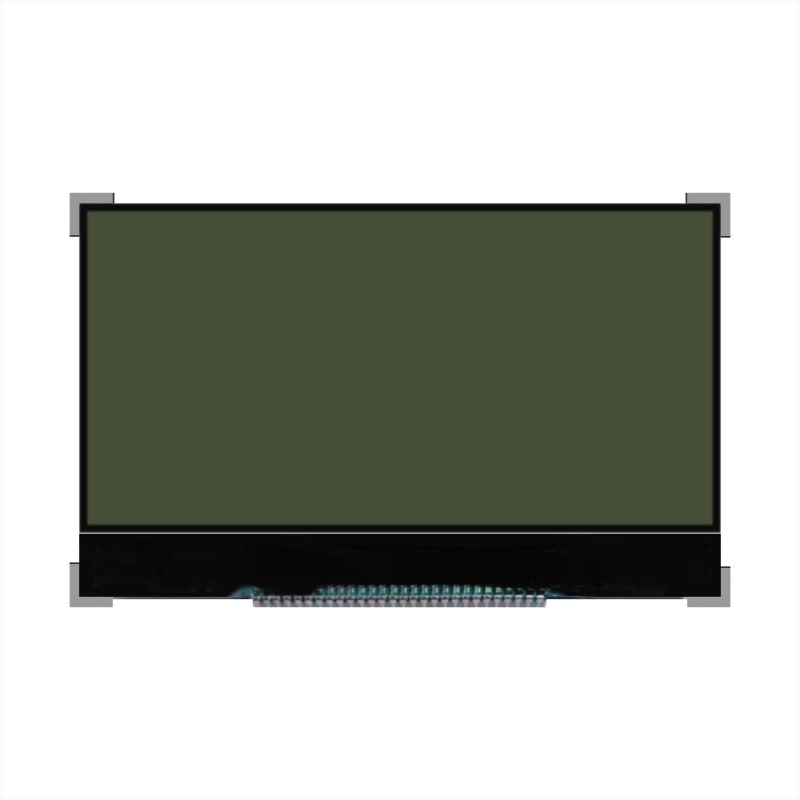

FSTN LCD 128*64 dot Transflective position TN Display Module
FEATURES：
(1) Display Type: FSTN, 6 O’CLOCK, Transflective / Positive
(2) Driving Method: 1/65DUTY, 1/9 BIAS
(3) Built-in controller: ST7565R
(4) LED Backlight: 4 PCS White LED Backlight , If=60±5mA & Vf=3.0±0.2V
(5) VDD: 3.0±0.2V, Vop：9.0±0.2V
LCM Model:R12864-338
LCD Resolution:128x64
LCM Interface:MCU
FSTN Liquid Crystal Display Module (LCM) parameters
|
Item |
Specification |
Unit |
|
LCD screensize |
/ |
inch |
|
Display Type |
128x64 |
Pixel |
|
LCD Type |
FSTN,, Transflective / Positive |
-- |
|
Driver Condition |
1/64DUTY, 1/9 BIAS |
|
|
Viewing angle |
6 O’CLOCK |
- |
|
Backlight Type |
4PCS White LED Backlight , If=60±5mA & Vf=3.0±0.2V |
|
|
LCM Module Outline |
77.4(W)x52.4 (H)x6.5(D) |
mm |
|
Viewing Area |
70.0(W) x 40.0(H) |
|
|
LCD AA |
66.54 (W) x33.26(H) |
mm |
|
Dot Size |
0.50(W) x0.50(H) |
|
|
Dot Pitch |
0.52(W) x0.52(H) |
|
|
Driver IC |
ST7565P |
- |
|
LCDInterface |
MCU |
-- |
|
Luminance |
/ |
cd/㎡ |
|
Weight (LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
