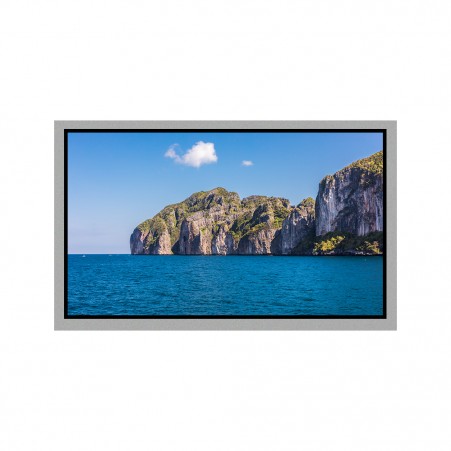

8.0inch 1920x1200LVDS 2channel LCD screen for laptop display
8.0inchliquid crystal modulenormallyBlack 1920xRGBx1200 LVDS interfacecustomized lcd for Pilot aircraft
Product advantages:high quality tft lcd,high brightness lcd module touch panel
LCM Model:R80009-19201200LT
LCD Size:8.0inch
LCDPixels:1920x1200
LCM Interface:LVDS 2channel
Display view angle:IPS
DisplayLuminance:1000nits
Touch Screen:optional capacitive touch
8.0 inch LCD module 1920x1200 high quality tft lcd parameters:
Item
Specification
Unit
LCD screen size
8.0
inch
Display Mode
Normally Black
--
Resolution
1920x(RGB)x1200
Pixel
Pixel arrangement
RGB Vertical Stripe
Viewing angle
Full View
-
TLCM Module Outline
/
mm
LCM Module Outline
181.7 (W) ×119.80 (H) ×5.5 (T)
mm
LCD AA
172.224(W)×107.640(H)
mm
Display Colors
16.7M
colors
Driver IC
FL5893DA*2
-
LCD Interface
LVDS-2
--
Luminance
1000
cd/㎡
Backlight Arrangement
White LED
--
Capacitive Touch panel
Option
Touch IC
/
--
Touch point
Multi-point
--
Touch structure
G+G
--
Touch Interface
IIC(I2C)
--
Cover lens
GLASS
mm
Surface hardness
≧6H
--
Cover lens Colors
Black
--
Weight (LCM/TP+LCM)
/
kg
Operating Temperature
-20℃~ +70℃
Deg.c
Storage Temperature
-30℃~ +80℃
Deg.c
