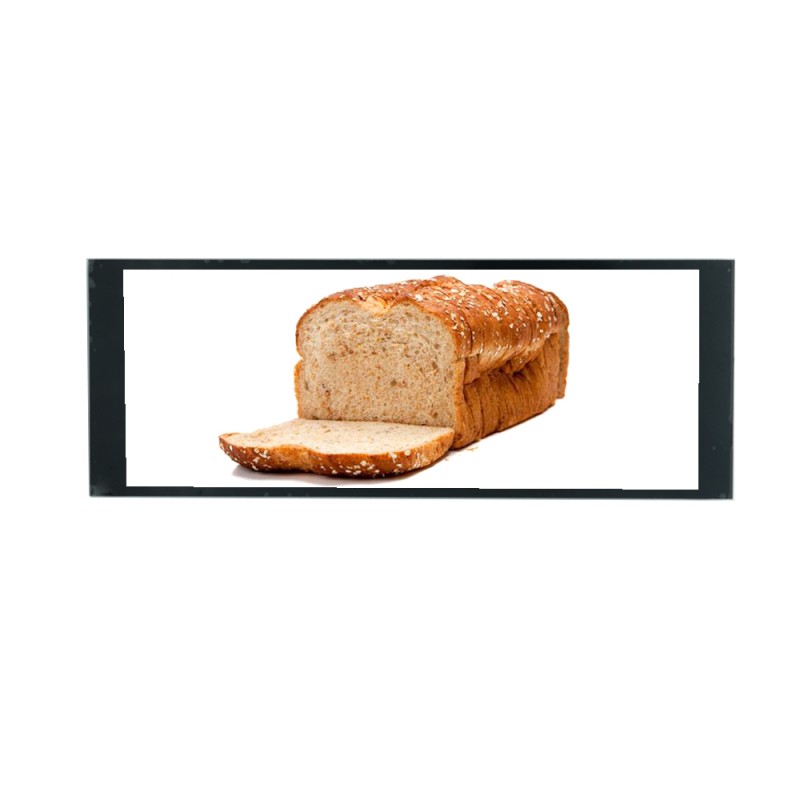

6.86inch bar lcd module 480*1280 500nits mipi IPS tft lcd modules
6.86inch LCD normally Black 480xRGBx1280 mipi interface lcd display module for Navigation systems,GPS
Product advantages: high brightnesslcd display,Bar type lcd display
LCM Model:R68601-4801280MZ-QC
LCD Size:6.86inch
LCD Resolution:480x1280
LCM Interface:MIPI
LCM OD:171.79x65.72x2.6
LCDAA:160.51x60.19
Display view angle:IPS
Display brightness:400-1000nits(option)
Touch Screen:capacitive touch
6.86inch LCD module 480x1280 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
6.86 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
480x(RGB)x1280 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-ModuleOutline |
181.40 (W) ×67.00 (H) ×4.18 (T) |
|
|
LCM ModuleOutline |
171.79 (W) ×65.72 (H) ×2.6 (T) |
mm |
|
LCD AA |
160.51(W)×60.19(H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
/ |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
500 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
PCAP |
|
|
Touch IC |
GT9271 |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
