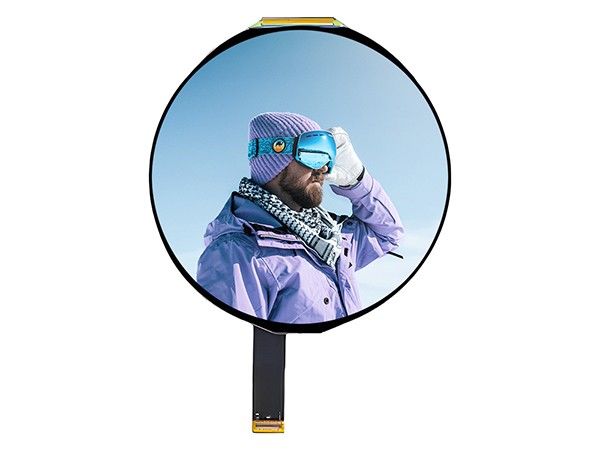

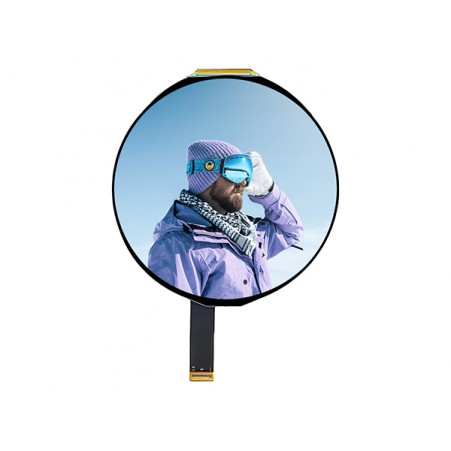

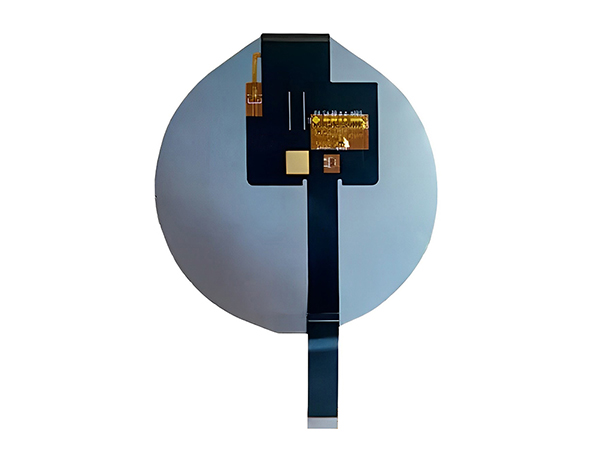

5.0inch round LCD Display IPS 1080x1080 MIPI Interface round screen for POS
5.0 inch round LCD display full view 1080xRGBx1080, MIPI interface square lcd screen
Product advantages: Round lcd ,High contrast ratio and wide viewing angle
LCM Model: R50005-10801080MZ
LCD Size: 5.0inch
LCD AA: 127.008x127.008
LCD Resolution: 1080x1080
LCD Interface: MIPI
Display view angle: IPS
DisplayLuminance: 300nits
Touch Screen: optional capacitive touch panel
5.0inch round LCD module 1080x1080 circle tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
5.0 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
1080x(RGB)x1080 |
Pixel |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
132.208 (W) x136.531 (H) x2.0 (T) |
mm |
|
LCD AA |
127.008 (W)x127.008 (H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
HX8399C |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
300(typ) |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
TBD( PCAP) |
|
|
Touch IC |
/ |
-- |
|
Touch point |
Multi-point(5 point) |
-- |
|
Touch structure |
Glass+Glass |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
Do LCD screens still exist?
LCD screens were still widely used in various electronic devices such as TVs, computer monitors, smartphones, tablets, and digital watches. LCD (Liquid Crystal Display) technology has been a mainstay in the display industry for decades due to its versatility, relatively low cost, and energy efficiency.
