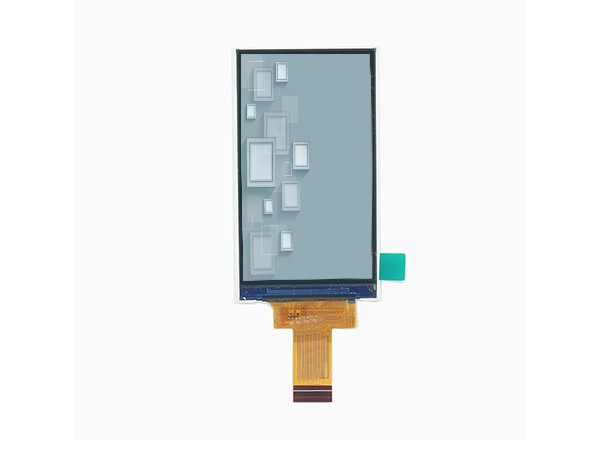

3.0inch 480*854 tft lcd 800nits MIPI IPS tft lcd module
3.0inch LCD module normally black 480xRGBx854 MIPI interface for medical instrument
Product advantages:Full View angle, high brightness lcd display
LCM Model:R30070-480854MZ
LCD Size:3.0inch
LCD Resolution:480x854
DriverIC:ST7701S
LCM Interface:MIPI
LCM OD:42.70x74.70x2.45
LCD AA:37.44x66.61
Display view angle:IPS
Display brightness: 800nits
Touch Screen: projectcapacitive touch panel
3.0inch tft LCD 480x854 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
3.0 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
480x(RGB)x854 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full view(IPS) |
- |
|
Module outline dimension |
42.70 (W) ×74.70 (H) ×2.45 (T) |
mm |
|
LCD AA |
37.44（W）×66.61（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ST7701S |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
800 |
cd/㎡ |
|
Backlight Arrangement |
White LED（6S1P） |
-- |
|
Capacitive Touch panel |
option |
|
|
Touch IC |
- |
-- |
|
Touch point |
5finger point |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
Glass |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
White/Black |
-- |
|
Weight (LCM/TP+LCM) |
0.3 |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
3.0inch tft lcd module dimension MIPI interface：
