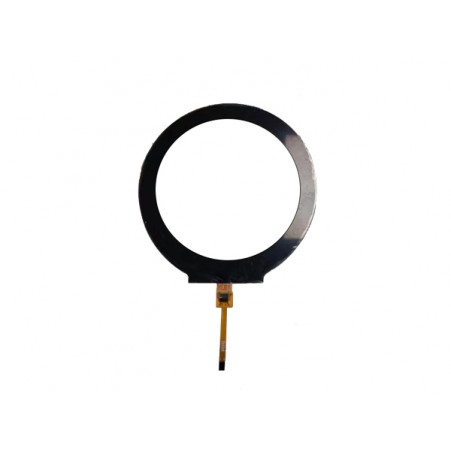

2.8inch Capacitive round touch screen for 480*480 IPS circle type tft lcd
2.8inch round capacitive touch panel
CTP Model:RTPC28001
Touch Panel Size:2.8inch
Touch Panel Interface:I2C/IIC
Touch IC:CST
Cover Glass Colour:optional black or white
Oprating Temp.( ℃): -20~+70
Storage Temp.(℃): -30~+80
2.8inch touch panel screen for LCD module parameters
|
Item |
Specification |
Unit |
|
Touch panel size |
2.8 |
inch |
|
Touch Module Outline |
81.23(W) ×84.4(H) ×0.95(T) |
|
|
Viewing Area |
70.73(W)×70.73(H） |
mm |
|
Touch panel Type |
Project Capcitive touch screen |
|
|
Touch IC |
CST |
-- |
|
Touch point |
Multi-point/Single-point+gesture |
-- |
|
Touch structure |
Glass+OCA+film |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Cover lensColors |
Black/White |
-- |
|
Surface hardness |
≧6H |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
|
PIN NO. |
PIN DEF. |
FUNCTION DESC. |
|
1 |
GND |
Ground |
|
2 |
INT |
TP Interrupt PIN(3.3V) |
|
3 |
SDA |
TP I2C data (SDA) data input (MOSI)(3.3V) |
|
4 |
SCL |
TP I2C clock (SCLK)(3.3V) |
|
5 |
RESET |
TP RESET PIN(3.3V) |
|
6 |
VCC |
TP Input Power voltage(3.3V) |
|
7 |
GND |
Ground |
What is an example of a capacitive touch screen?
An example of a capacitive touch screen is the one commonly found on smartphones and tablets. These touch screens use the electrical properties of the human body to detect touch, allowing for multi-touch gestures like tapping, swiping, and pinching. When you touch the screen with your finger, it disrupts the electrical field of the screen, allowing the device to detect the location and movement of your touch.
