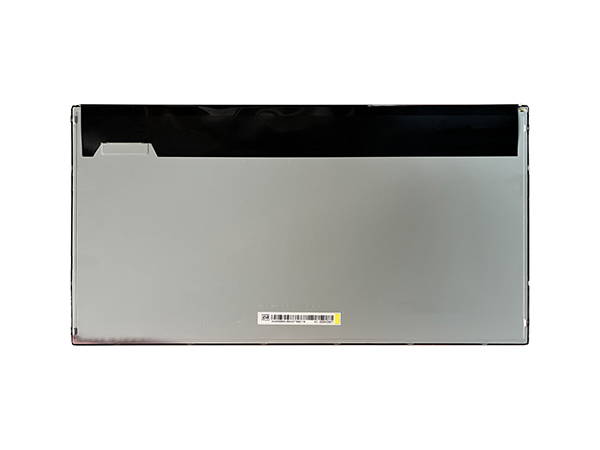

21.5inch 1920x1080 lvds lcd touch display with hdmi board
Rondelidisplay 21.5inch lcd module is a color active matrix TFT LCD module using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This module has a 21.5 inch
diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.
LVDS Interface with 2 pixel / clock
1.High-speed response
2.0.5t Glass
3.6-bit (Hi-FRC) color depth, display 16. 7M colors
4.Incorporated edge type back-light (One Light Bar)
5.High luminance and contrast ratio, low reflection and wide viewing angle
6.DE (Data Enable) only
7.RoHS/Halogen Free
8.ES 8.0 ,TCO8.0 compliant
9.Gamma Correction
10.Reverse typ
Application:
1.Desktop Type of PC & Workstation Use2.Slim-Size Display for Stand-alone Monitor
3.Display Terminals for Control System
4.Monitors for Process Controller
21.5inch LCD Module General Specifications:
|
Parameter |
Specification |
Unit |
|
Active area |
476.064(H)×267.786(V) |
mm |
|
Number of pixels |
1920(H)×1080(V) |
pixels |
|
Pixel pitch |
0.24795(H)x 0.24795(V) |
mm |
|
Pixel arrangement |
RGB Vertical stripe |
- |
|
Display colors |
16.7M |
colors |
|
Display mode |
Normally Black |
- |
|
Dimensional outline |
495.6(H)×292.2(V)×10.7(D) typ. |
mm |
|
Weight |
1.97 |
Kg |
|
Bezel width (L/R/U/D) |
7.9/7.9/10.5/10.5 |
mm |
|
Surface Treatment |
Anti-glare, 3H |
- |
|
Back-light |
Lower side 1-LED Lightbar Type |
- |
