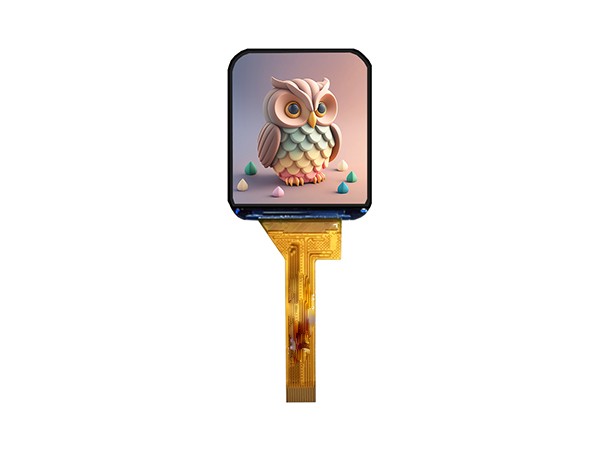

1.7inch square digital display 240*280 SPI IPS square lcd display for smart home with touch screen
1.7inchsqurae LCD display full view 240xRGBx280 SPI interface square monitor for scanner instrument
Product advantages:square lcd high brightness
LCM Model:R17002-240240SZ
LCD Size:1.7inch
LCD AA:27.97x32.63
LCD Resolution:240x280
LCD Interface:SPI
Display view angle:IPS
DisplayLuminance:600nits
Touch Screen:optional capacitive touch panel
1.7inch LCD module 240x280 square tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
1.7 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
240x(RGB)x280 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-ModuleOutline |
/ |
|
|
LCM ModuleOutline |
30.07 (W)×37.43 (H)×1.6 (T) |
mm |
|
LCD AA |
27.97(H) x32.36(V) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ST7789 |
- |
|
LCDInterface |
4line SPI |
-- |
|
Luminance |
600(typ) |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Option PCAP |
|
|
Touch IC |
/ |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
glass |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
Do square monitors exist?
Yes, square monitors do exist, although they are less common than widescreen monitors. Square monitors typically have an aspect ratio of 1:1, meaning the width and height are equal. They were more prevalent in the past, especially with older CRT (cathode ray tube) monitors. However, with the shift to flat-panel displays, widescreen formats have become more popular due to their compatibility with modern content, such as movies and websites. Still, some industries or specialized applications may still use square monitors for specific purposes.
