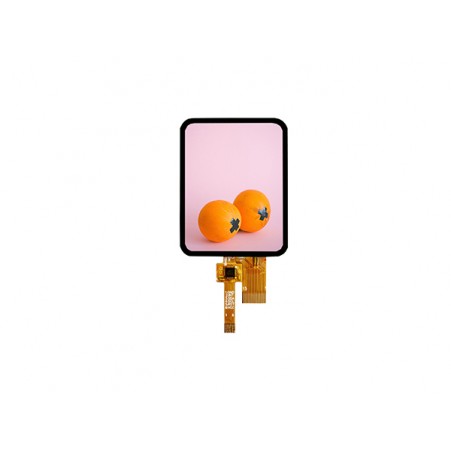

1.7inch 240x280 square digital display SPI medical instrument
1.7inch bar type TFT LCD normally Black 240xRGBx280
SPI interface for instrument display
Product advantages: square monitor high brightness
LCM Model: R17001-240280SZ
LCD Size: 1.7inch
LCD AA: 27.97 ×32.63
LCD Resolution: 240x280
LCD Interface: SPI or MCU 8bit
Display view angle: IPS
DisplayLuminance: 250nits
Touch Screen: optional capacitive touch
|
No. |
Item |
Specification |
Unit |
|
1 |
Display Size (Diagonal) |
1.7 |
inch |
|
2 |
DisplayResolution |
240(H） × RGB ×280（V） |
pixels |
|
3 |
Pixel Pitch |
116.55(H）×116.55（V） |
um |
|
4 |
TLCM Outline Dimension (Without FPC） |
33.23(W) ×43.65 (H) ×3.63 (T) |
mm |
|
5 |
LCM Outline Dimension (Without FPC） |
30.07 (W) ×37.43 (H) ×1.6 (T) |
mm |
|
6 |
LCD Active Area |
27.97（W） ×32.63（H） |
mm |
|
7 |
ViewDirection (Gray Inversion) |
FULL VIEW |
- |
|
8 |
Driver IC |
ST7789T3 |
- |
|
9 |
Pixel Arrangement |
RGB-Stripe |
- |
|
10 |
Display Mode |
Normal Black |
- |
|
11 |
Pixel driving Element |
a-Si TFT |
- |
|
12 |
LCD Transmittance |
Typ.:5.0% Min:5.0% |
- |
|
13 |
LCD Contrast Ratio |
Typ.: 1000 |
- |
|
14 |
FPC Version |
/ |
- |
|
15 |
Interface |
SPI |
- |
|
16 |
Operating Temperature |
-20°C~ 70°C |
- |
|
17 |
Storage Temperature |
-30°C~ 80°C |
- |
|
18 |
Backlight Arrangement |
LED |
- |
|
19 |
Luminance |
250（Typ） |
nit |
|
20 |
Weight |
TBD |
kg |
What is touch panel vs pad?
A touch panel and a touch pad are both input devices that respond to touch, but they serve different purposes and have distinct characteristics:
Touch Panel
- Definition: A touch panel is usually a display screen that detects touch input. It allows users to interact directly with what is displayed, often found in devices like smartphones, tablets, and interactive kiosks.
- Functionality: Touch panels can serve as both an input and output device since they display information while allowing users to control the interface through touch.
- Types: Common types include capacitive and resistive touch panels.
- Use Cases: Frequently used in public information displays, ATMs, voting machines, and smart TVs.
Touch Pad
- Definition: A touch pad (or trackpad) is a flat surface that detects finger movement and translates it into cursor movement on a computer screen. It is primarily used for navigation.
- Functionality: Touch pads use gestures (like tapping, scrolling, or swiping) to control the cursor and execute commands, similar to a mouse.
- Common Locations: Often found on laptops and as standalone devices connected to desktop computers.
- Use Cases: Primarily used in computing for navigation and control, especially where space is limited.
In essence, a touch panel integrates both visual display and touch input, suitable for interactive applications, while a touch pad is mainly for navigating interfaces without a separate mouse.
