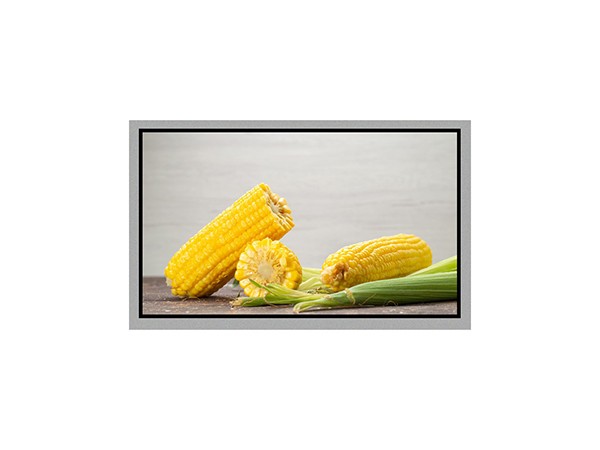

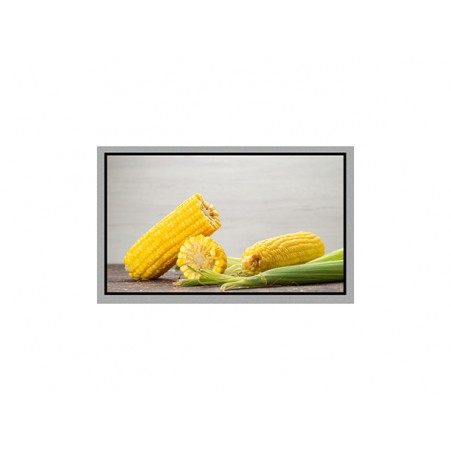

12.1inch 1280*800 LVDS IPS high brightness monitor
12.1inch industrial LCD display full view 1280xRGBx800
LVDS interface monitor for industrial equiment
Product advantages: industrial lcd high brightness
LCM Model: R121001-1280800LZ
LCD Size: 12.1inch
LCD AA: 261.120x163.2
LCD Resolution: 1280x800
LCD Interface: LVDS
Display view angle: IPS
DisplayLuminance: 1600nits
Touch Screen: optional capacitive touch panel
R121001-1280800LZ is a color active matrix TFT LCD panel using amorphous silicon TFT's(ThinFilm Transistors) as an active switching devices. This panel has a 12. 1 inch diagonally measured active area with XGA resolutions ( 1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(8 bits) colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type
12.1inch LCD module 1280x800 indutrial screen tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
12.1 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
1280x(RGB)x800 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
303.12 (W) ×205.2(H) ×10.8 (T) |
|
|
LCM Module Outline |
283.0 (W) ×185.1(H) ×7.15 (T) |
mm |
|
LCD AA |
261.120(W)×163.2(H) |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
/ |
- |
|
LCDInterface |
LVDS |
-- |
|
Luminance |
1600(typ) |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
PCAP |
|
|
Touch IC |
/ |
-- |
|
Touch point |
Multi-point(10point) |
-- |
|
Touch structure |
glass |
-- |
|
Touch Interface |
IIC/USB |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
